Litter box furniture that actually works

Overview

The problem with every litter solution on the market

Cat owners go through the same journey. The litter box starts in the bathroom — out of sight, but litter ends up everywhere, so you buy a mat that barely helps. The mess becomes unbearable, so you invest in an enclosure. Now it looks cleaner, but the mat is still there, the litter waste bin is still sitting out in the open, and your setup still occupies a disproportionate footprint in your home.

Every enclosure on the market solves only one thing: hiding the litter box. None address where the waste bin goes, how litter gets tracked beyond the entrance, or what the product looks like in a real living room. Most are styled with cat-themed cutouts and barn-door silhouettes — decorative signals that announce rather than conceal their purpose.

"Imagine a piece of furniture you'd put in your hallway that also happened to contain everything cat litter–related — and guests would never know it."

This project set out to design exactly that.

The Challenge

Four problems, no complete solution

Existing products treat these as separate issues. This design treats them as one system.

Competitive Analysis

What the market actually offers

A review of top-selling litter enclosures on Amazon, Chewy, and Wayfair revealed that every product makes the same scoping decision: hide the litter box, ignore everything else.

Photo	Product	Furniture aesthetic	Hides waste bin	Litter trapping	Extra storage	Price

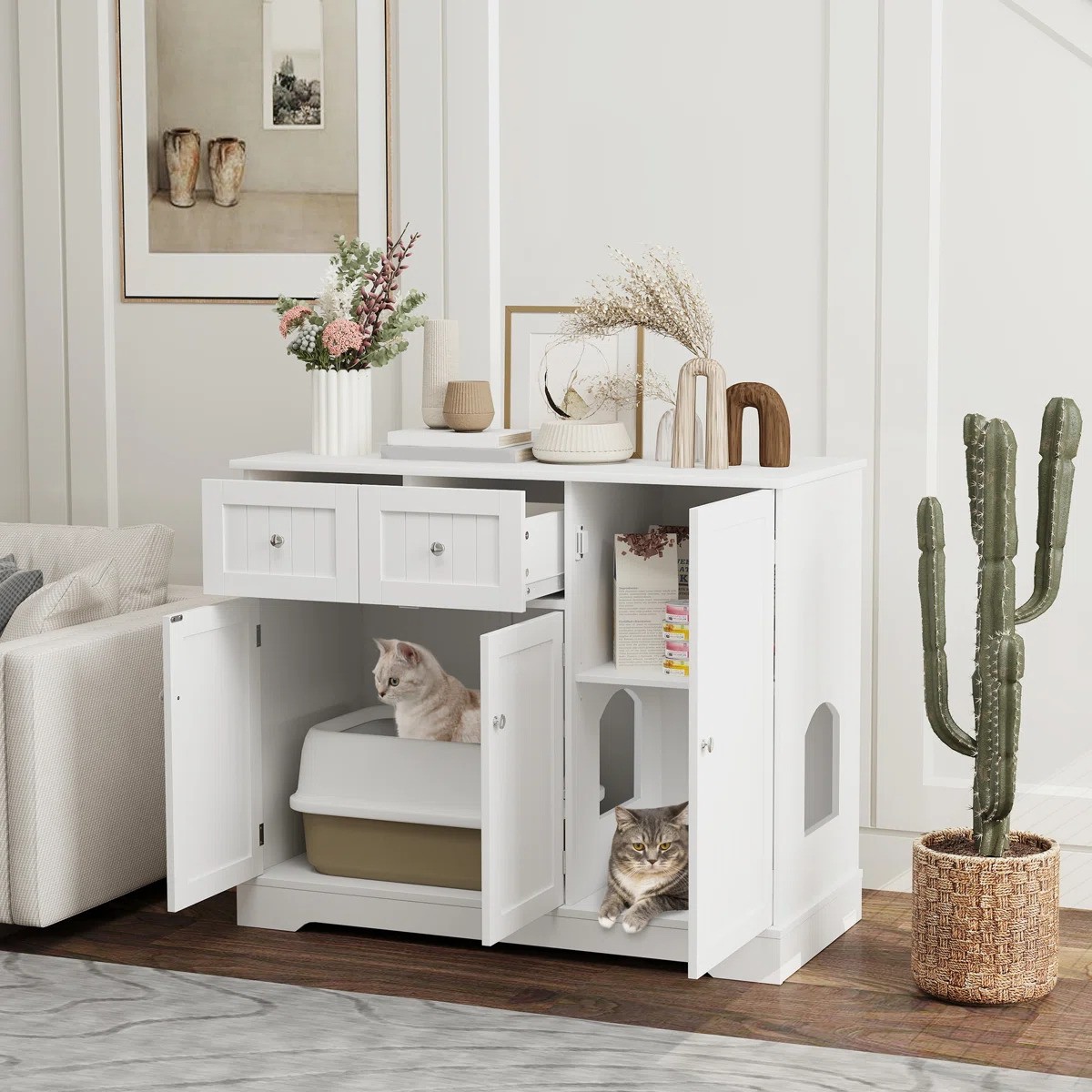

	Tucker Murphy Pet	✓	✗	✓	✓	Mid $190

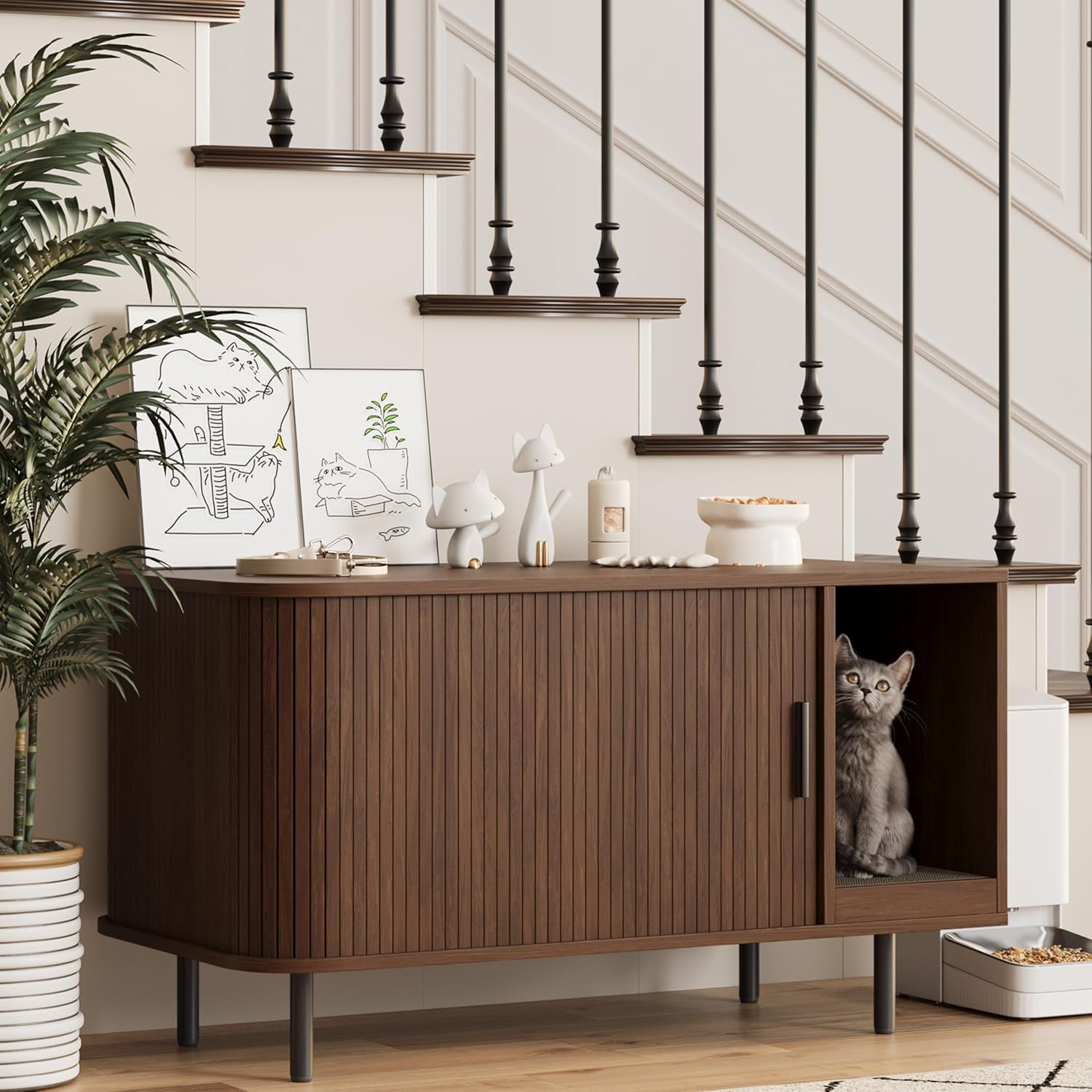

	Halitaa	✓	✗	✓	✗	Budget $110

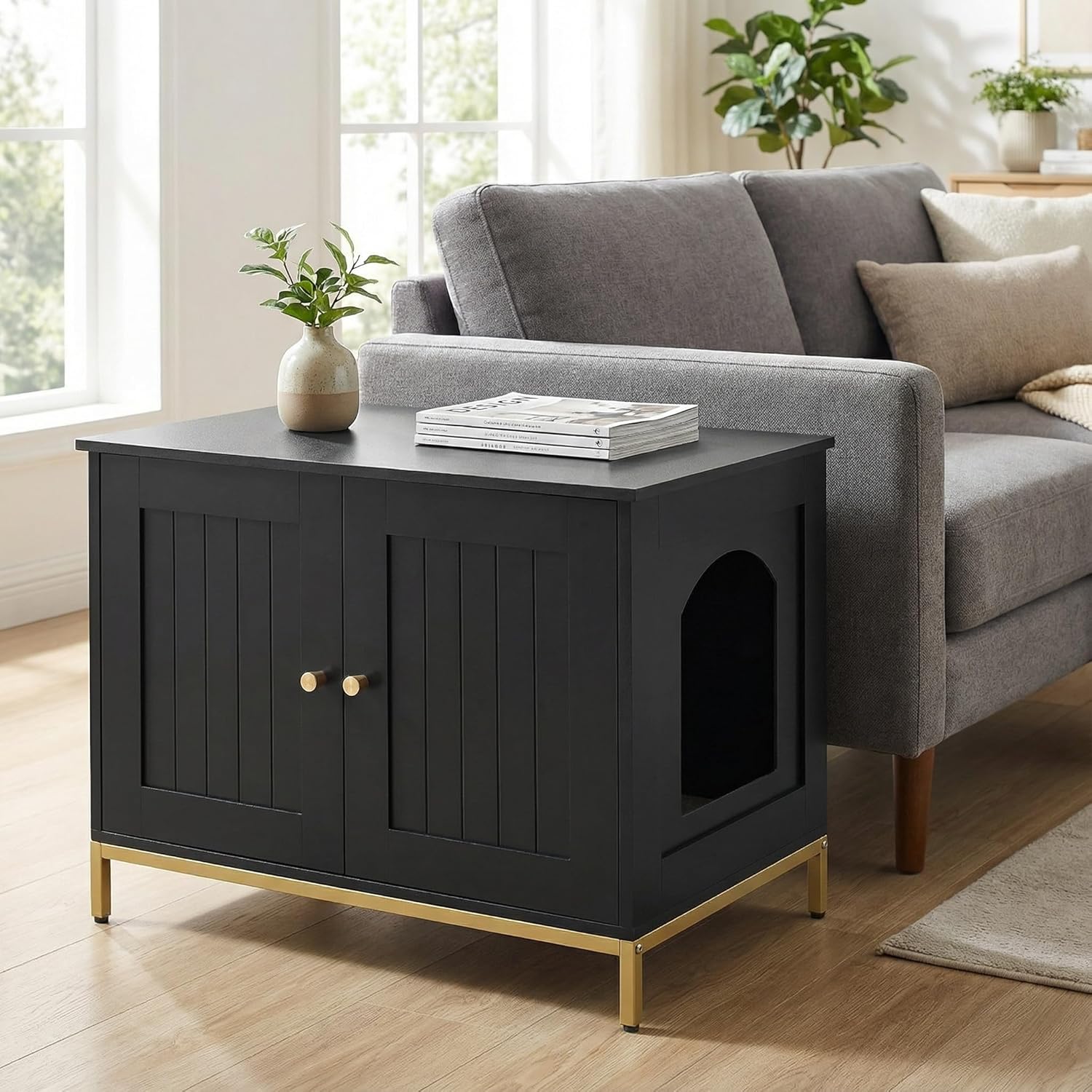

	Homhedy	✓	✗	✗	✗	Budget $80

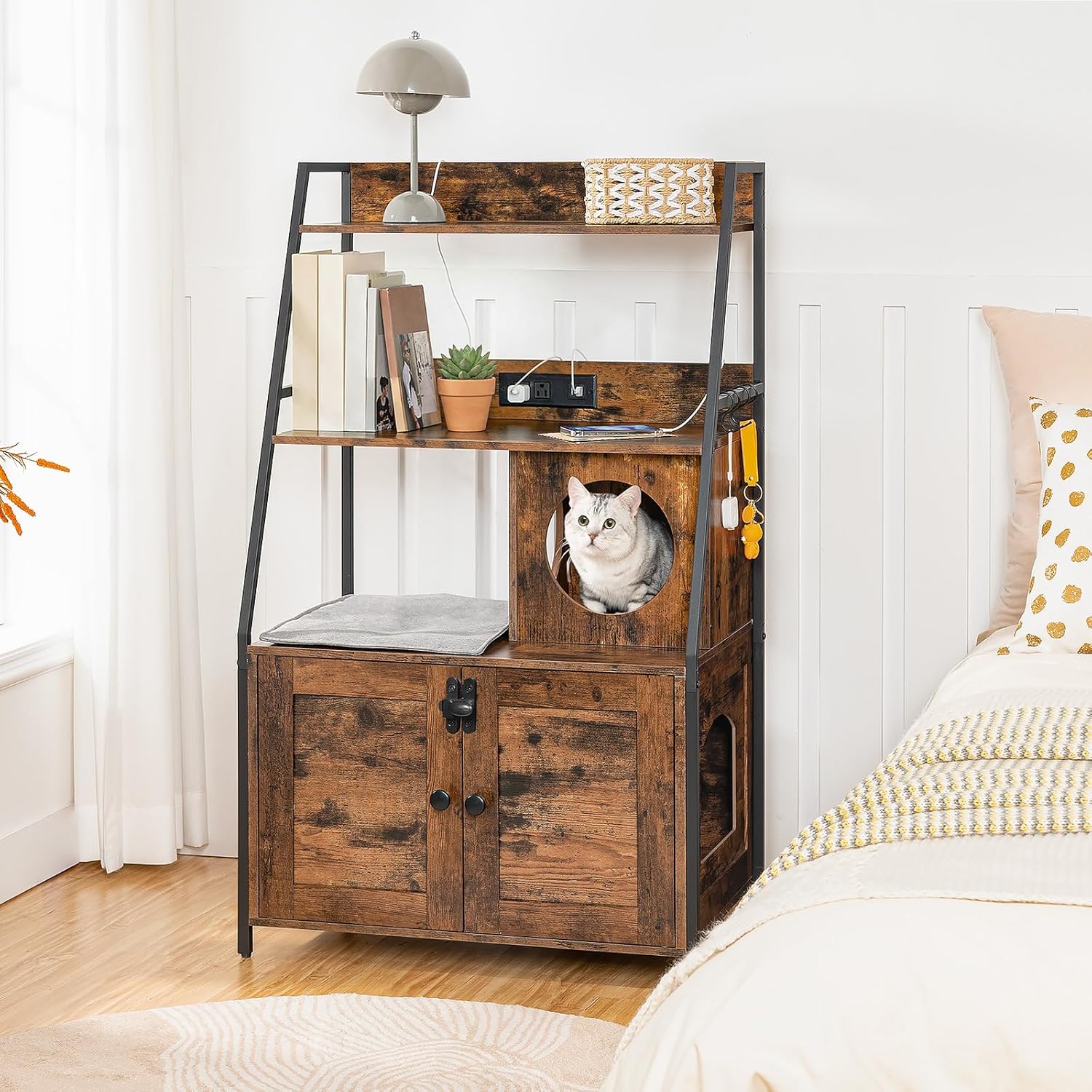

	Hoobro	✗	✗	✓	✓	Budget $115

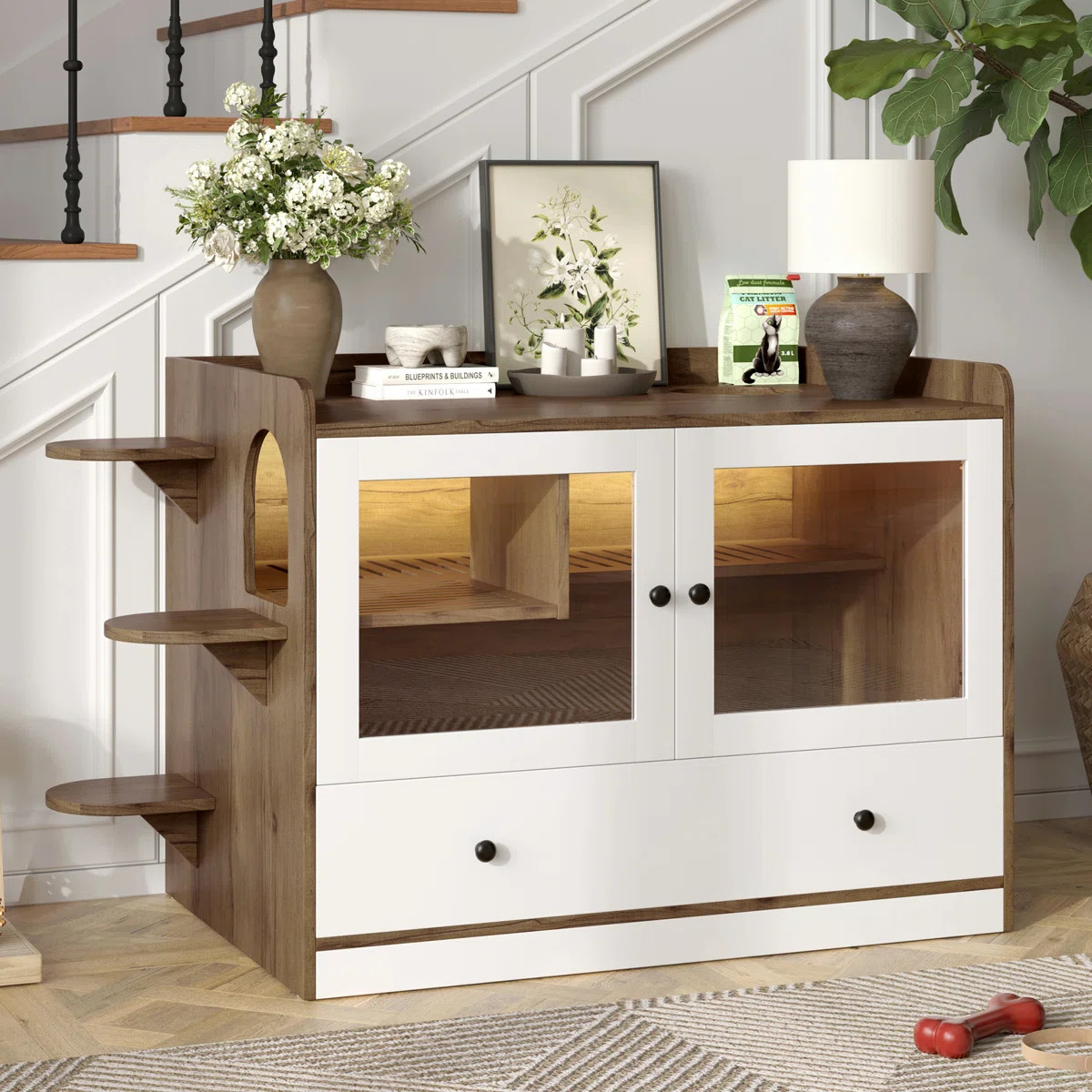

	Ebern Designs	✗	✗	✓	✗	Mid $250

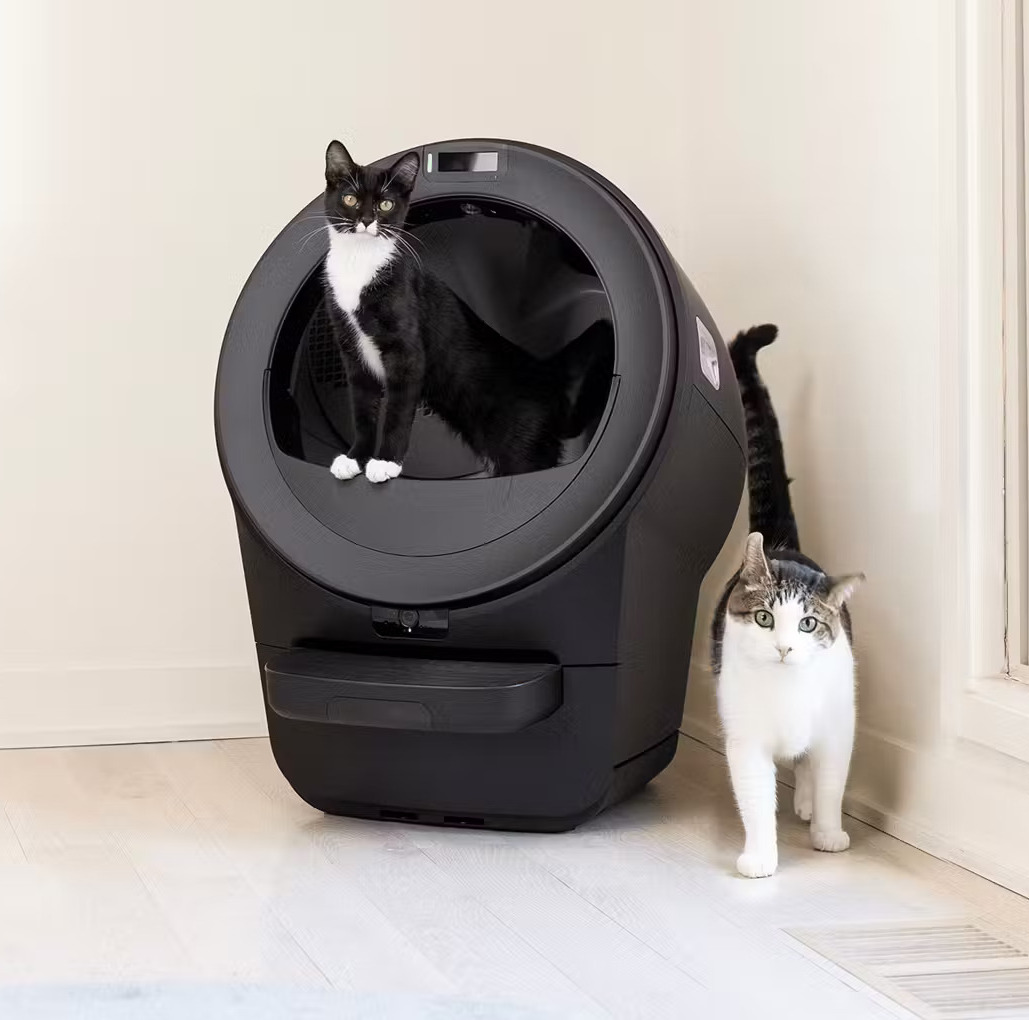

	Litter-Robot (automatic)	✗	✓	✗	✗	Premium $600–900

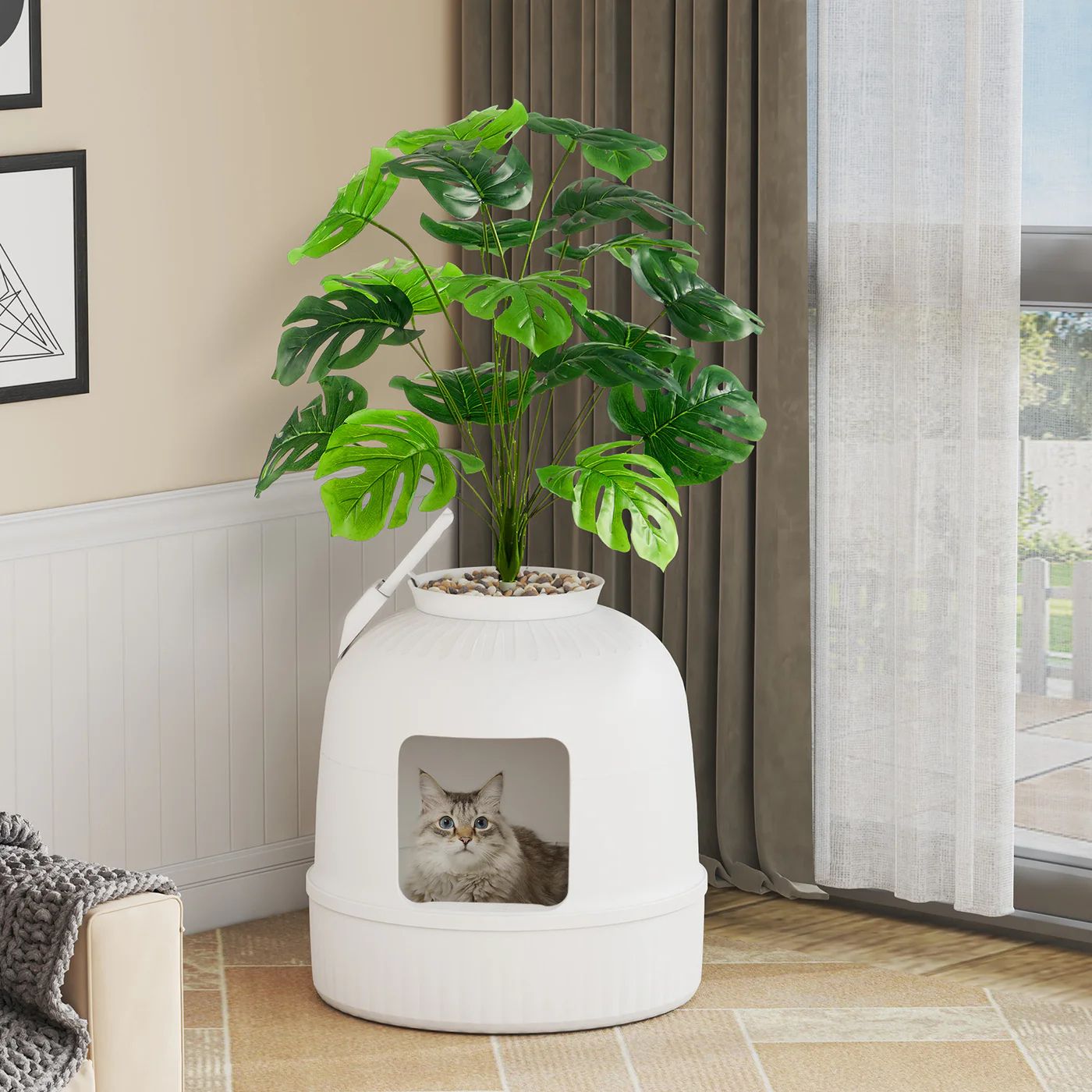

	Lifewit	✗	✗	✗	✗	Budget $70
	This design	✓	✓	✓	✓	Premium $549

Most enclosures solve one thing: hiding the litter box. No competitor addresses waste bin storage. A few address litter tracking, but a single straight corridor isn't enough. Some offer extra storage but it's rarely enclosed. The Litter-Robot handles waste automatically but costs $600–900, requires power, reads as an appliance, and still needs a mat at the exit — litter tracking is an unsolved problem regardless of how automated the box is. Tucker Murphy Pet comes closest, but leaves the waste bin exposed and the exit path too short to prevent tracking.

Research & Discovery

Constraints worth engineering around

Before sketching anything, I established the non-negotiable dimensional and ergonomic requirements — for the cat, for common cleaning hardware, and for the space itself.

Design constraints

Feline ergonomics

Interior dimensions were derived from published feline morphology data and veterinary litter box guidelines. Cited clinical sources inform the walk-over and corridor requirements; headspace and step-down figures are derived from average domestic cat anatomy.

User insights

Litter tracking is universal regardless of litter type. Fine-grain clays and crystals cling to paws and spread throughout a home; heavier pellets drop closer to the exit but still scatter. The standard fix is a mat — but the mat only shifts the problem. It wastes floor space, creates an obstacle, and becomes another surface to clean.

When off-the-shelf options fall short, owners turn to DIY — cutting cat doors into unused closets or drilling holes into IKEA shelving. These solutions work, but they require time, tools, and a willingness to modify your home.

The root problem is that no product on the market fully contains the litter setup and passes as real furniture. I went through every stage of this myself. The design in this case study is what I wish had existed from the start — so new cat owners don't have to spend the time and money finding out the hard way.

Who This Is For

The primary user

This design is grounded in personal experience. I'm the target user — a cat owner who has cycled through every common solution and found each one lacking in a different way. The persona below is drawn directly from that experience, not extrapolated from demographics.

The Cat Owner Who Has Already Tried Everything

25 · Living with family · Townhome · Two cats · Tofu litter

"It feels like the whole category is built to look like a solution without actually being one."

I switched to tofu litter specifically to reduce tracking — it helped, but I still find pieces several feet away a few times a week. I can't put a mat at the exit because one of my cats pees on it. The enclosure I own has a drawer that's half dead space, and no room for the waste bin — something I didn't think about until after buying it. Every furniture company just shows the litter box; no one shows where the waste bin goes. So the bin sits outside: an eyesore, and another thing to step around.

When I moved back home after college, my parents allowed me to adopt cats — something I don't take lightly. Every piece of litter on the floor, every obstacle in a shared hallway, is someone else's problem to deal with. The cat setup had to work with the home, not against it.

Tried multiple litter types Already owns an enclosure Can't use a mat — cat pees on it Still finds litter 2–3× a week Waste bin sits out in the open Drawer is half dead space Shared home — others live with the mess Wants furniture, not cat furniture

The Solution

One piece. Four problems solved.

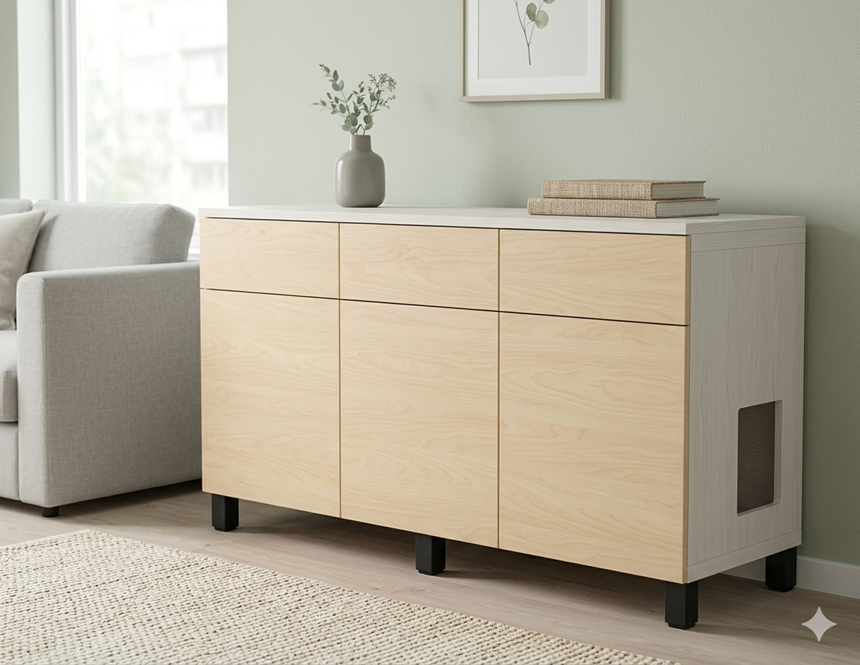

The design is a furniture-grade enclosure with a clean top surface, neutral material finish, and no cat-signaling aesthetic cues. From the outside, it reads as a credenza or hallway cabinet. Inside, it contains an engineered system for every problem the existing market ignores.

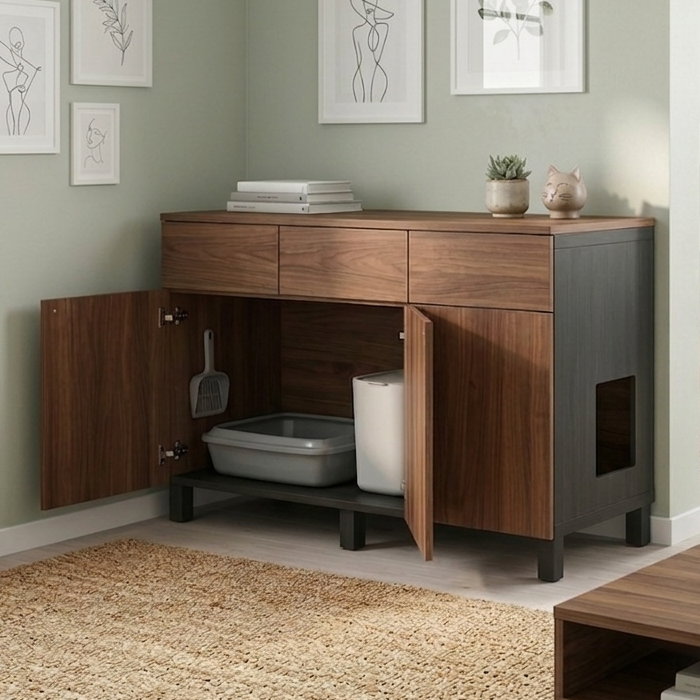

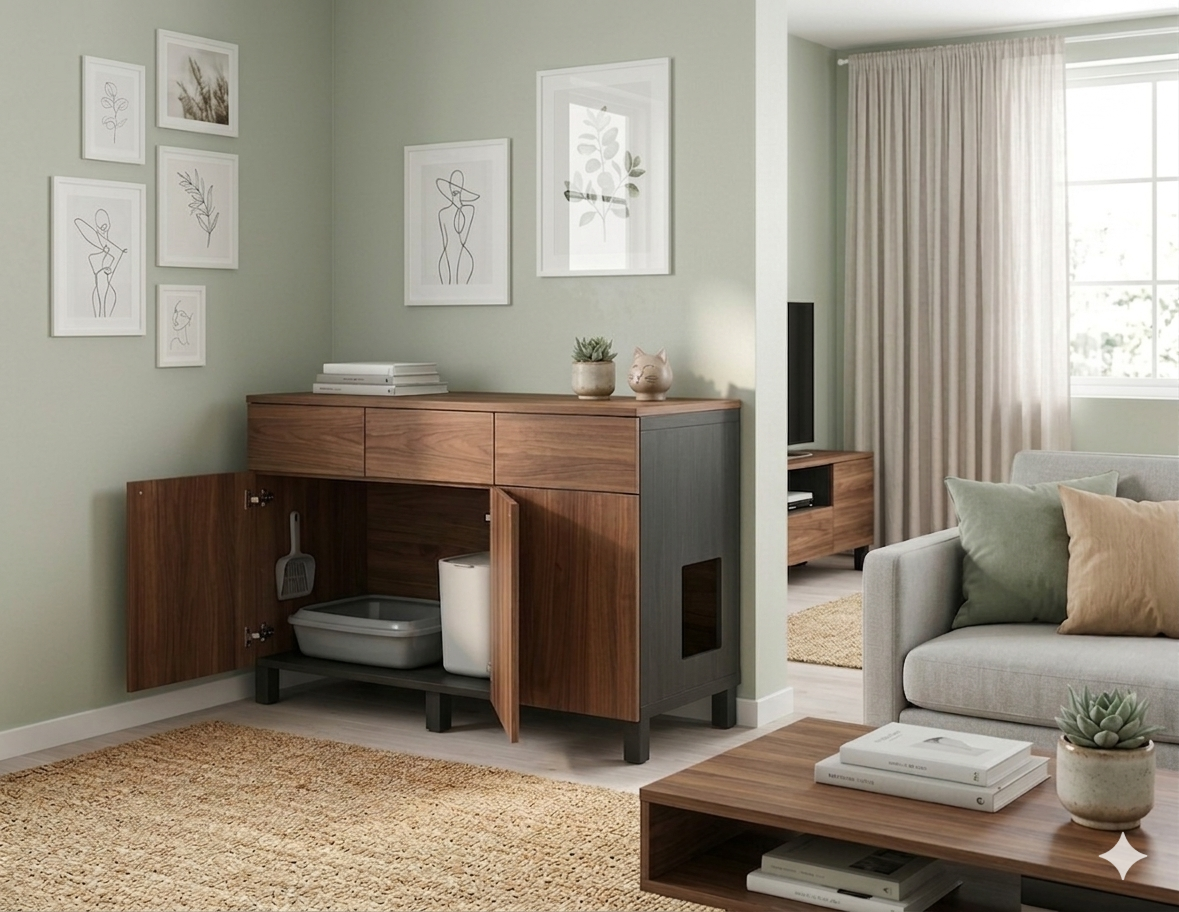

Concept render — interior visible with example litter box and waste bin setup.

Ideation & early decisions

Three layout concepts were developed and evaluated against the nine design constraints before committing to a design.

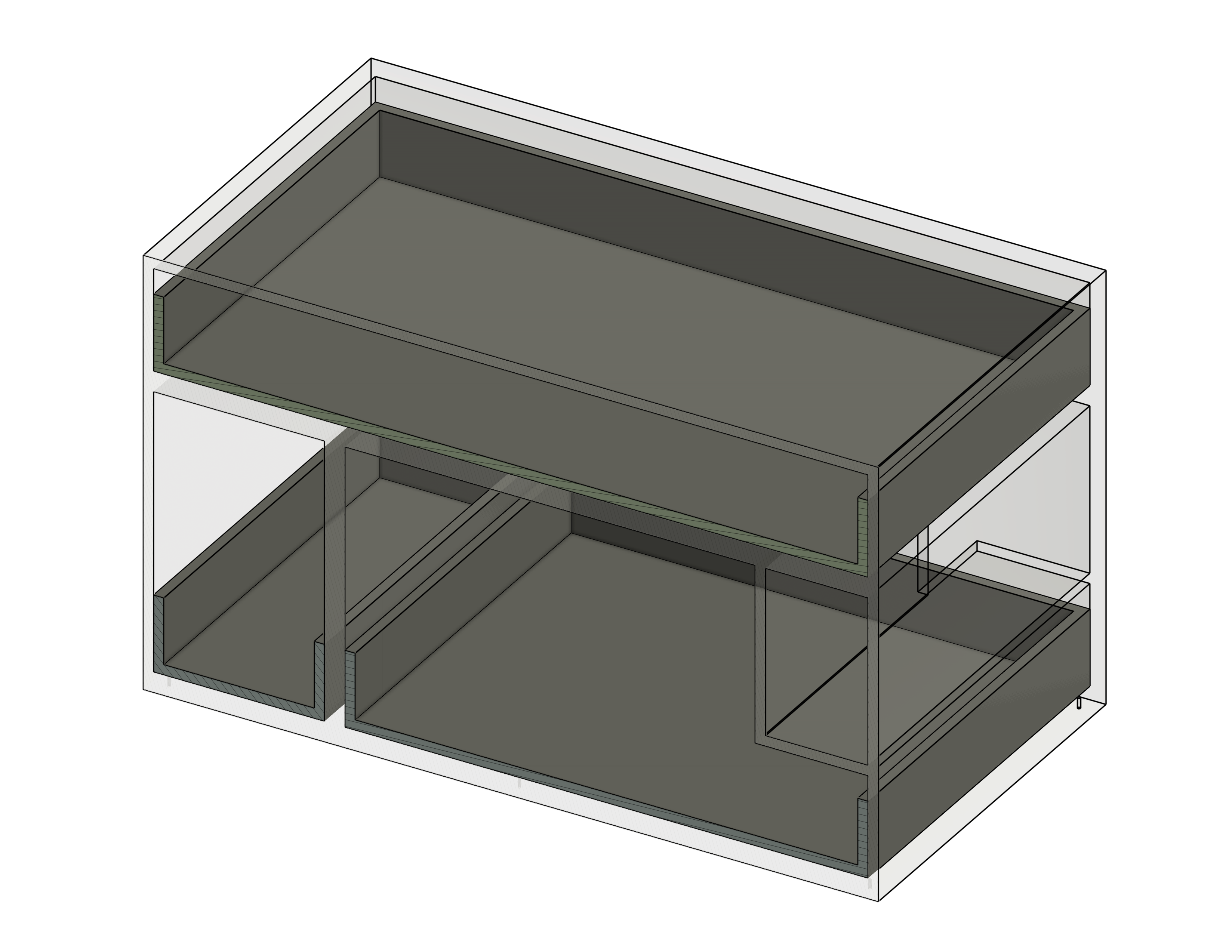

Option A — Rejected Smaller footprint with front entry and vertical drawer stack.

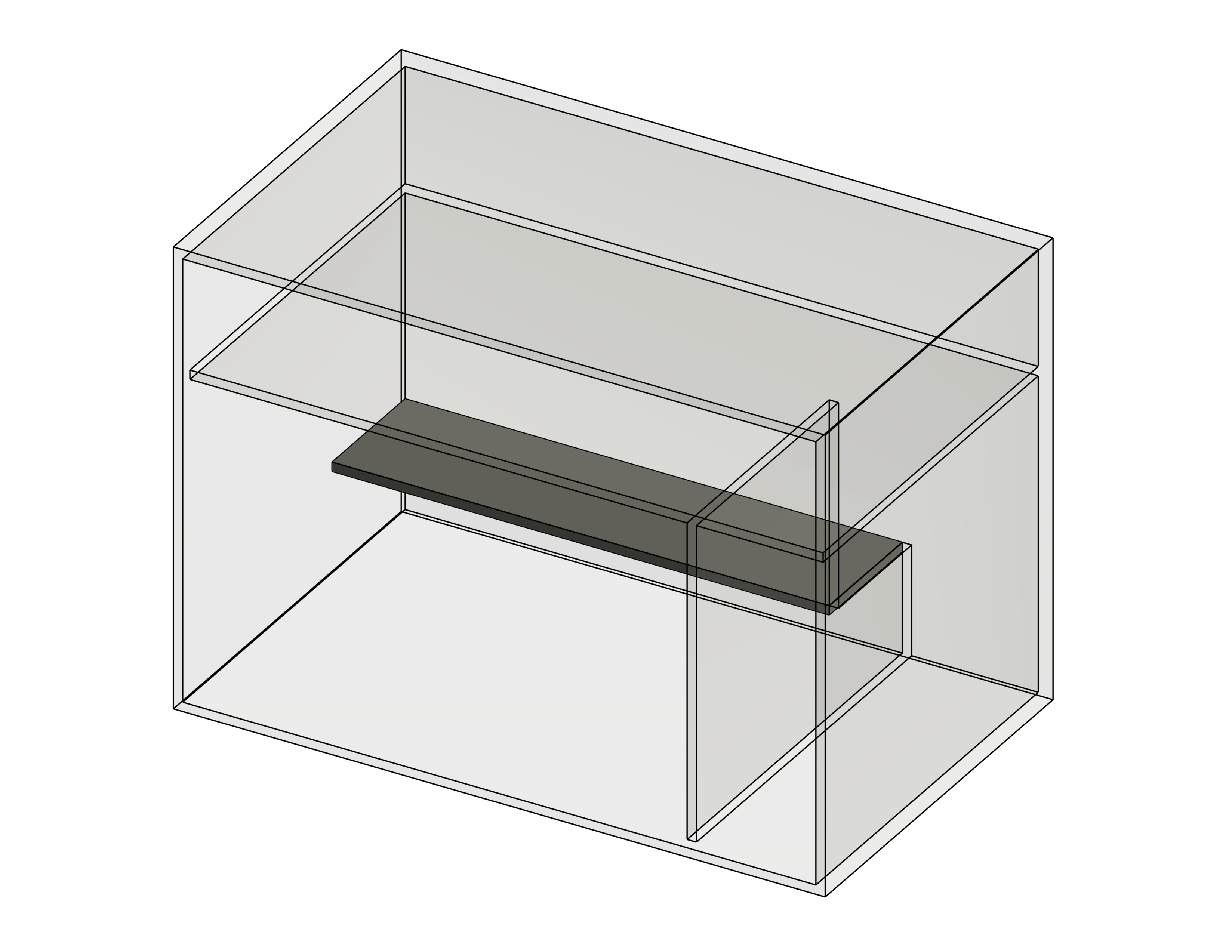

Option B — Rejected Smaller footprint with raised rear catwalk over litter box.

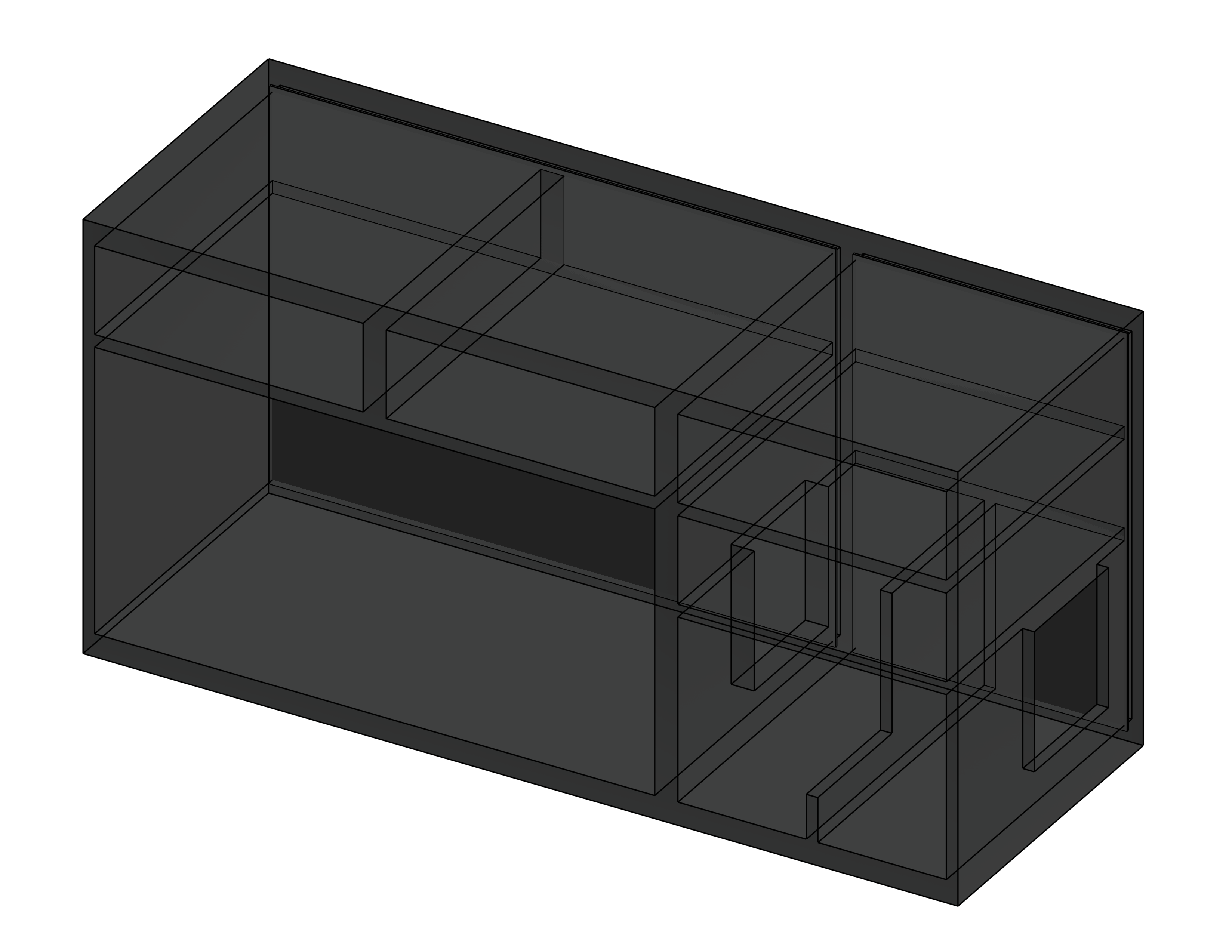

Option C — Chosen Expanded footprint with U-shaped maze and four storage sections.

Option A explored a front cat entry and a slide-out litter box tray at the base. Rejected — the door arrangement was structurally awkward, the walkway lacked support, and it became clear a dedicated waste bin compartment added unnecessary complexity.

Option B targeted a smaller footprint with no waste bin compartment, adding a raised catwalk over the litter box to capture litter passively. Rejected — the catwalk blocked litter box access at low heights, and raising it created a drop steep enough that cats would kick litter on the jump. The entry zone also left significant unusable dead space regardless of shelving.

Option C expands the footprint deliberately: a U-shaped maze creates three forced direction changes before exit, depositing litter inside the enclosure rather than outside. The additional volume is distributed across four storage sections with no wasted space. It is the largest of the three concepts — and the only one that satisfies every constraint without compromise.

Assembly & construction

The CAD model was developed with assembly clarity in mind — each component is a discrete panel or sub-assembly that maps to a logical build sequence.

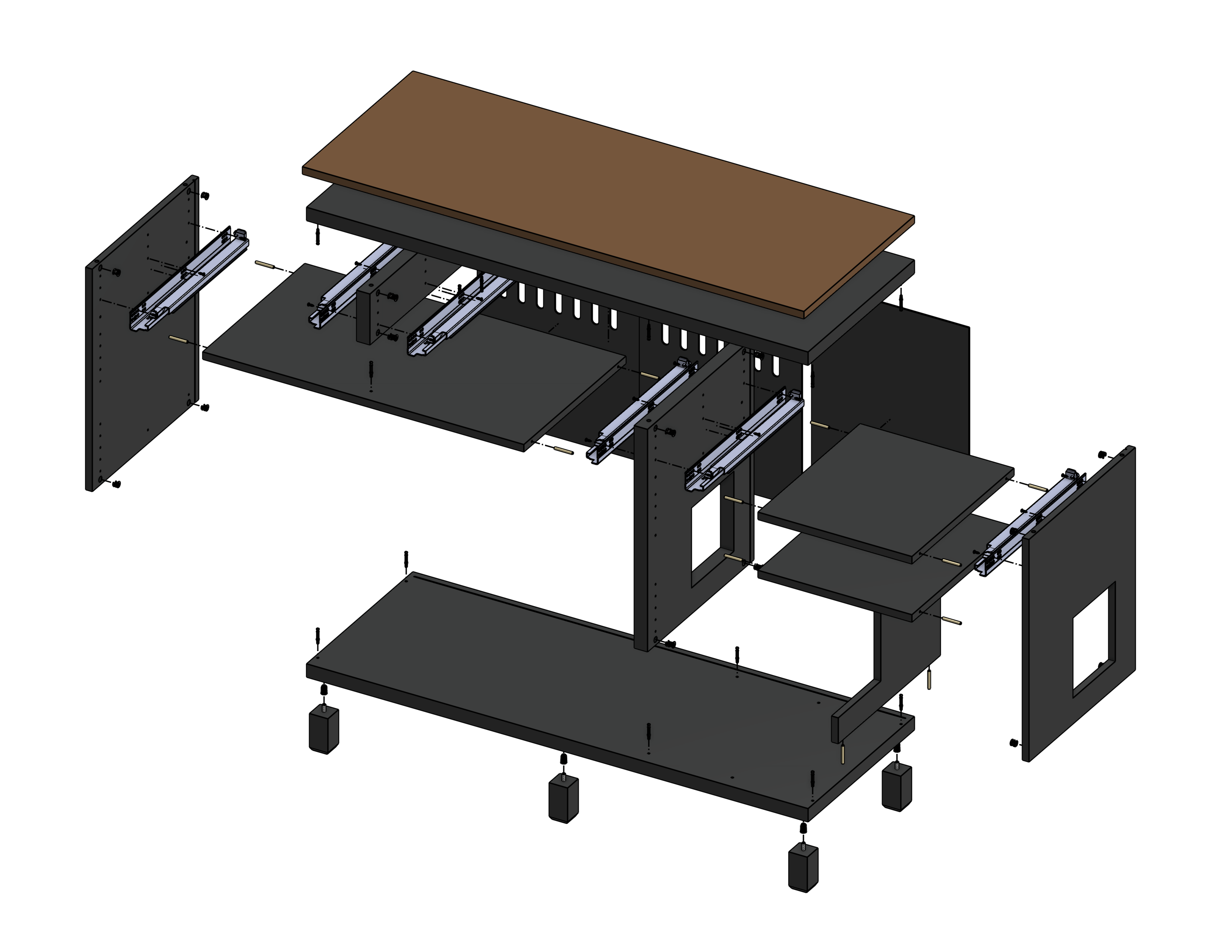

Exploded view of furniture showing how every piece fits together.

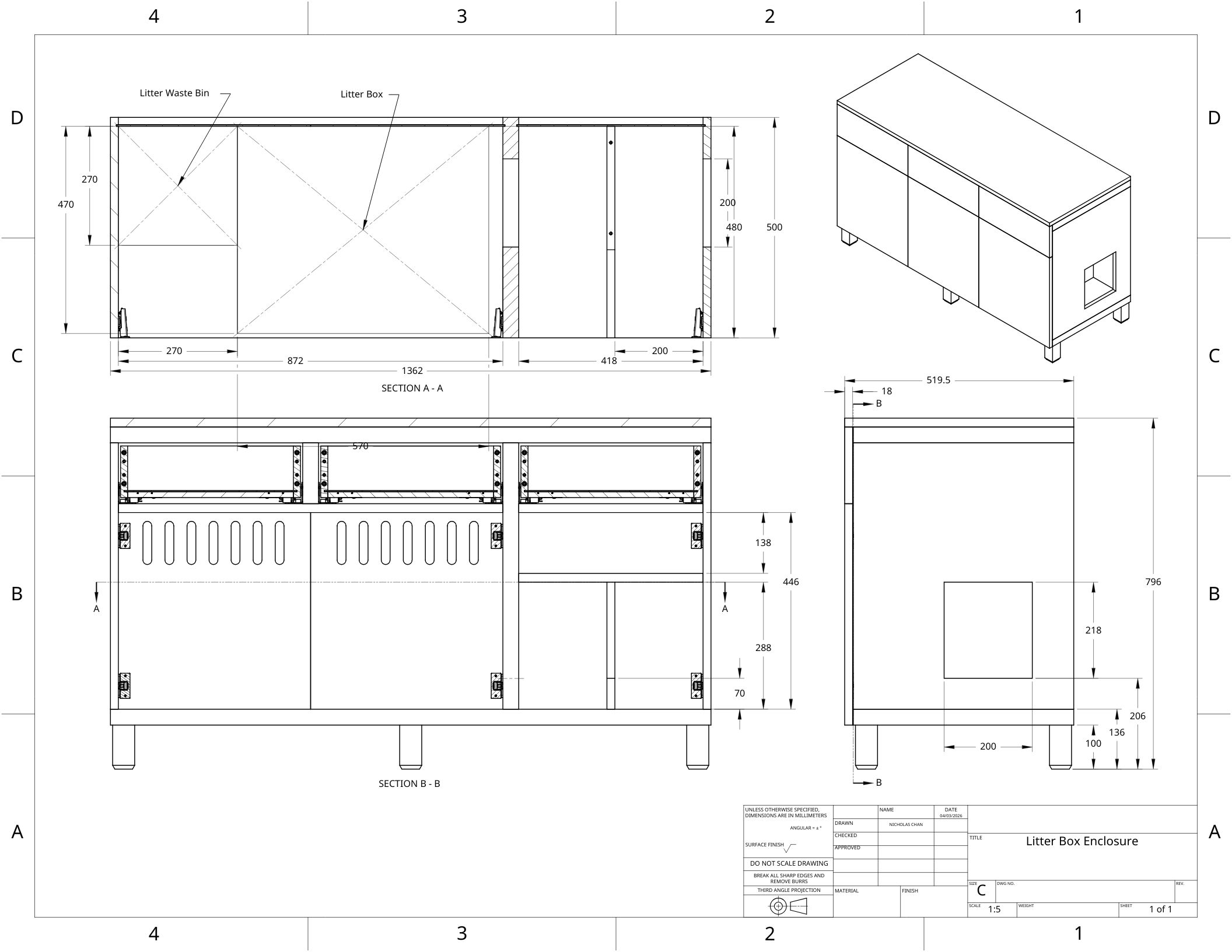

Dimensioned CAD drawing.

The enclosure is built from particleboard joined via cam-lock hardware for flat-pack assembly — the same construction method as IKEA's cabinet lines. The design shares IKEA's core principle: well-made, functional furniture that is affordable to as many people as possible, with surfaces that are individually swappable rather than requiring a full replacement.

Bill of materials

Every component in the design — panels, fasteners, cam-locks, hinges, drawer slides, legs, and screws — is fully specified in the Onshape model. Each part is parametric, meaning a change to a panel thickness or leg height propagates through the entire assembly automatically.

01

U-shaped maze corridor

A straight corridor fails — at 36–47 cm per stride, 12 steps requires 108–144 cm, consuming too much of the overall footprint. The U-shape introduces three forced direction changes; each pivot decelerates the cat and adds 2–4 steps that a straight path of the same length would never achieve. The rightmost door opens directly into the maze, giving easy access for cleaning.

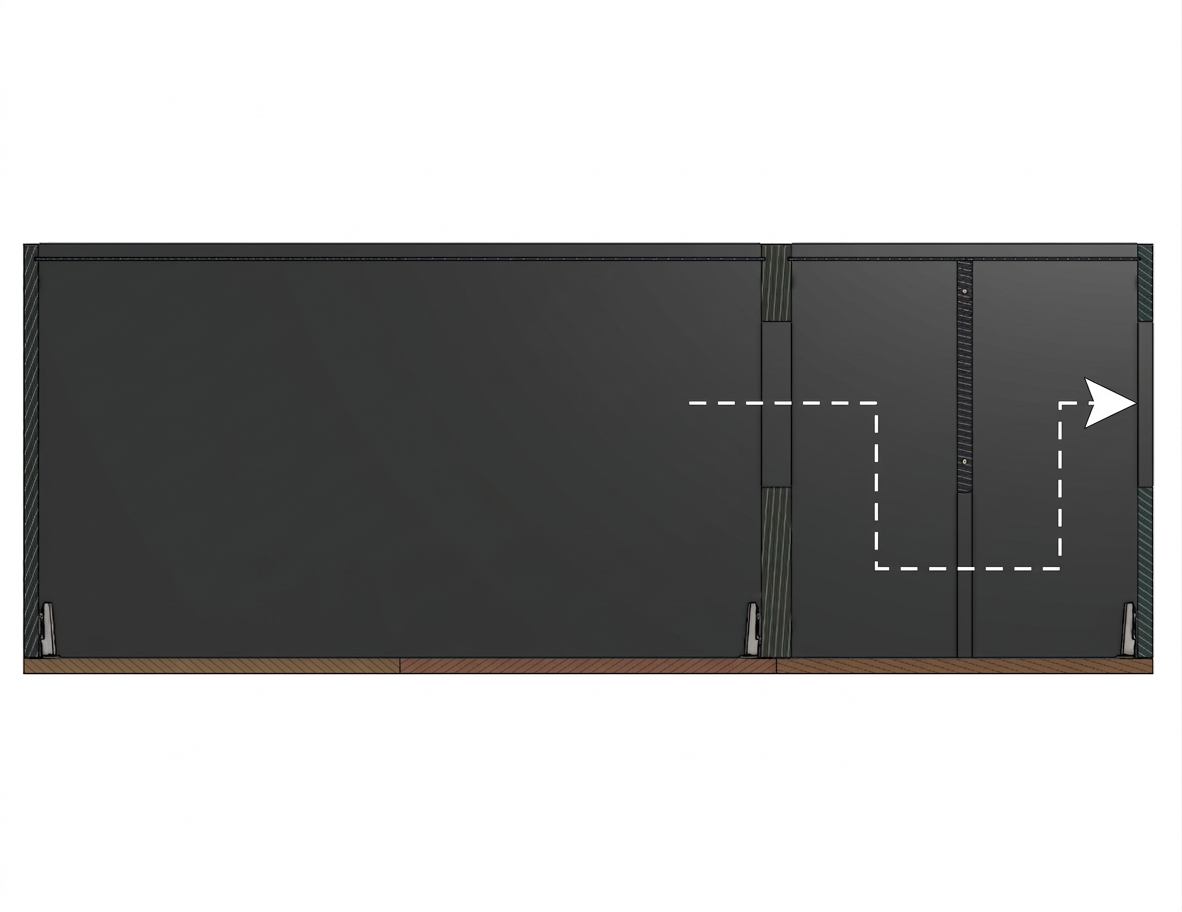

Intended exit path (white arrow). In practice cats tend to cut the corners, taking a more diagonal line — which still requires direction changes and floor contact throughout.

Sample layout of litter box and waste bin setup.

02

Waste bin accommodation

Every competing enclosure hides the litter box and leaves the waste bin sitting in the open. This design accounts for it from the start — space is allocated inside the main compartment to fit a litter waste bin alongside the litter box. The bin lives inside the enclosure, behind the two left doors, out of sight.

03

Generous owner storage

No volume is wasted. Four enclosed storage areas — three drawers at the top and one shelf above the maze — give back the floor space the enclosure takes. Each drawer fits over 60 small wet food cans with room to spare. In practice that means cat supplies, cleaning tools, or anything else you'd otherwise leave on a shelf. The enclosure earns its footprint in both directions.

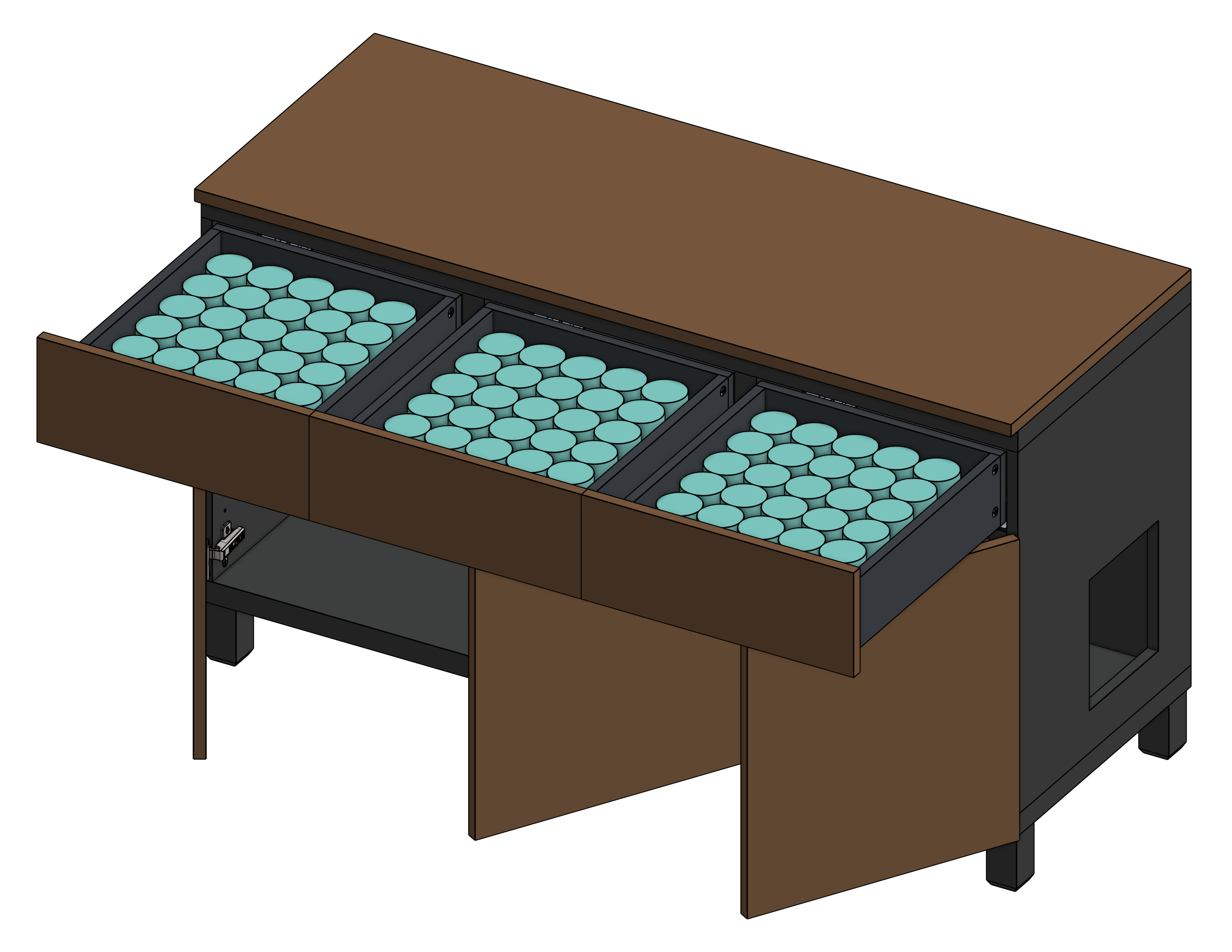

All drawers and doors open with sample occupied storage areas.

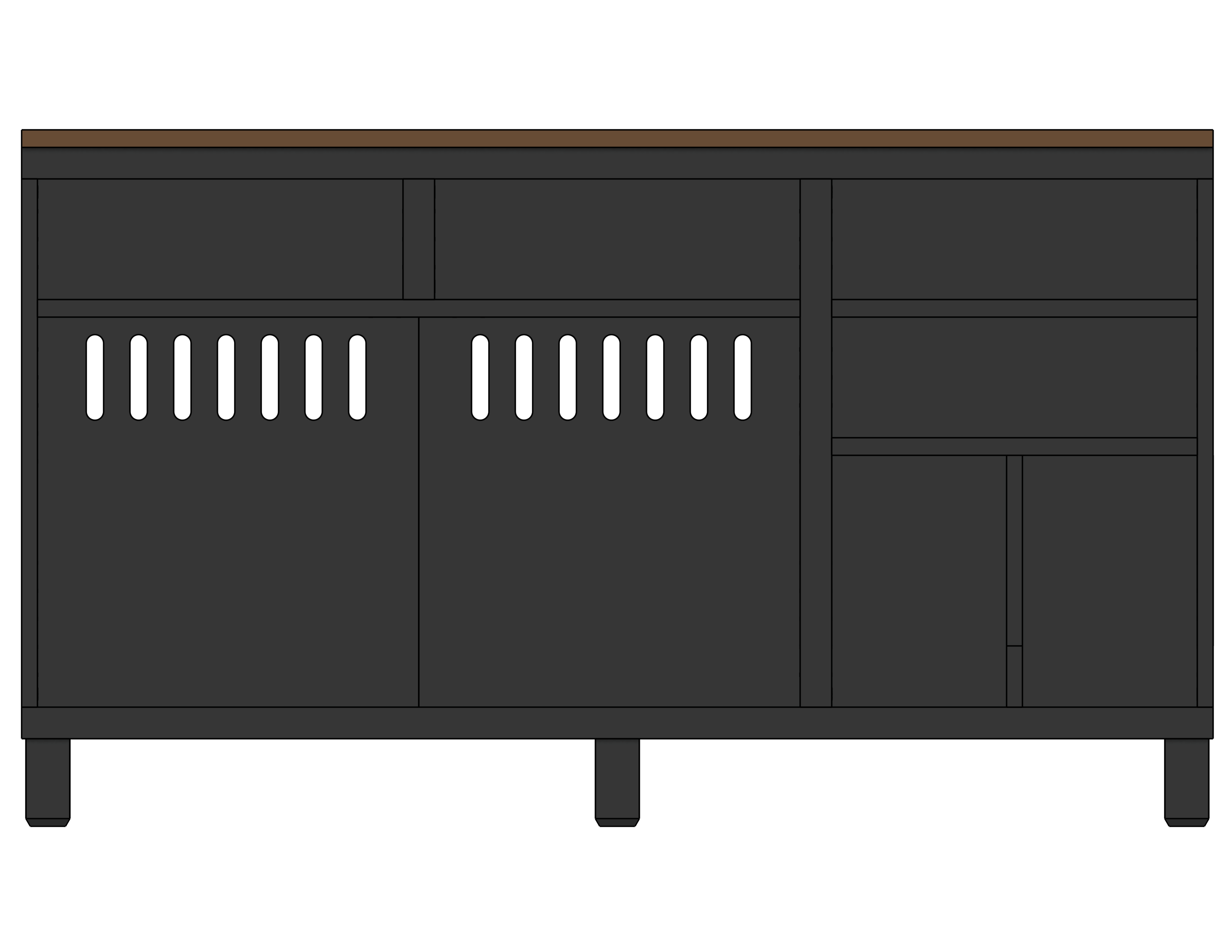

Front view — ventilation holes along the top of the back panel.

04

Passive ventilation

A row of ventilation holes runs along the top of the back panel, along with mounting holes on the interior column walls at the same height. These accept accessory trays for zeolite bags or loose charcoal, absorbing ammonia without powered fans or visible grills. The vents sit behind the furniture — no aesthetic compromise.

05

Designed to last

Push-to-open latches keep the entire front face flush and handle-free — or swap in handles and knobs if you prefer. The result reads as furniture — Japandi, Scandinavian, or contemporary — not as a cat product. The only visible signal of its function is the cat entrance on the right side panel.

Every visible surface is independently swappable. Tired of the finish? Replace the door faces. Cat gets older and needs lower entry? Remove the legs. Want clearance for a robot vacuum underneath? Swap to taller legs. The cabinet body stays — only what needs to change does. That's what separates a considered design from a product you replace in three years.

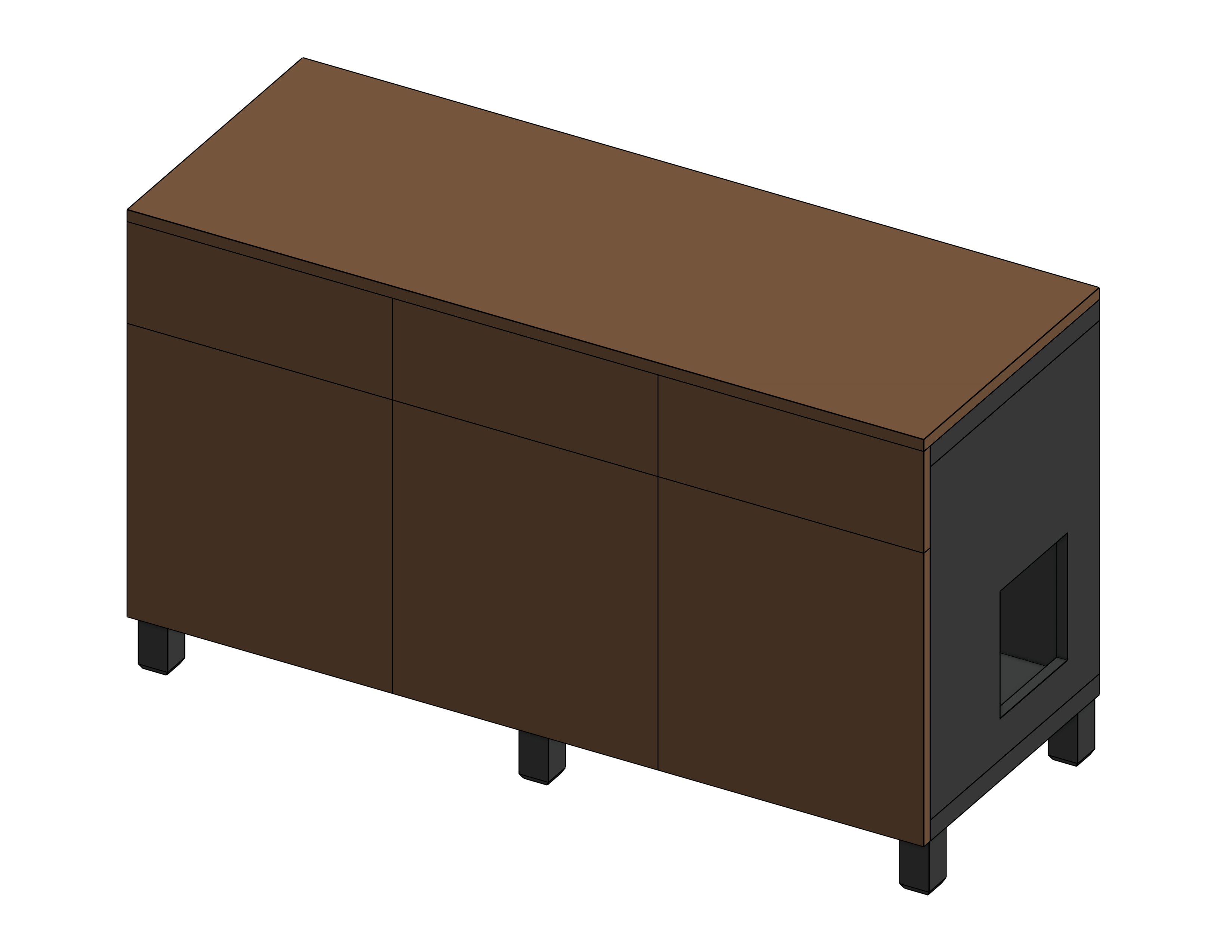

Isometric view of complete design.

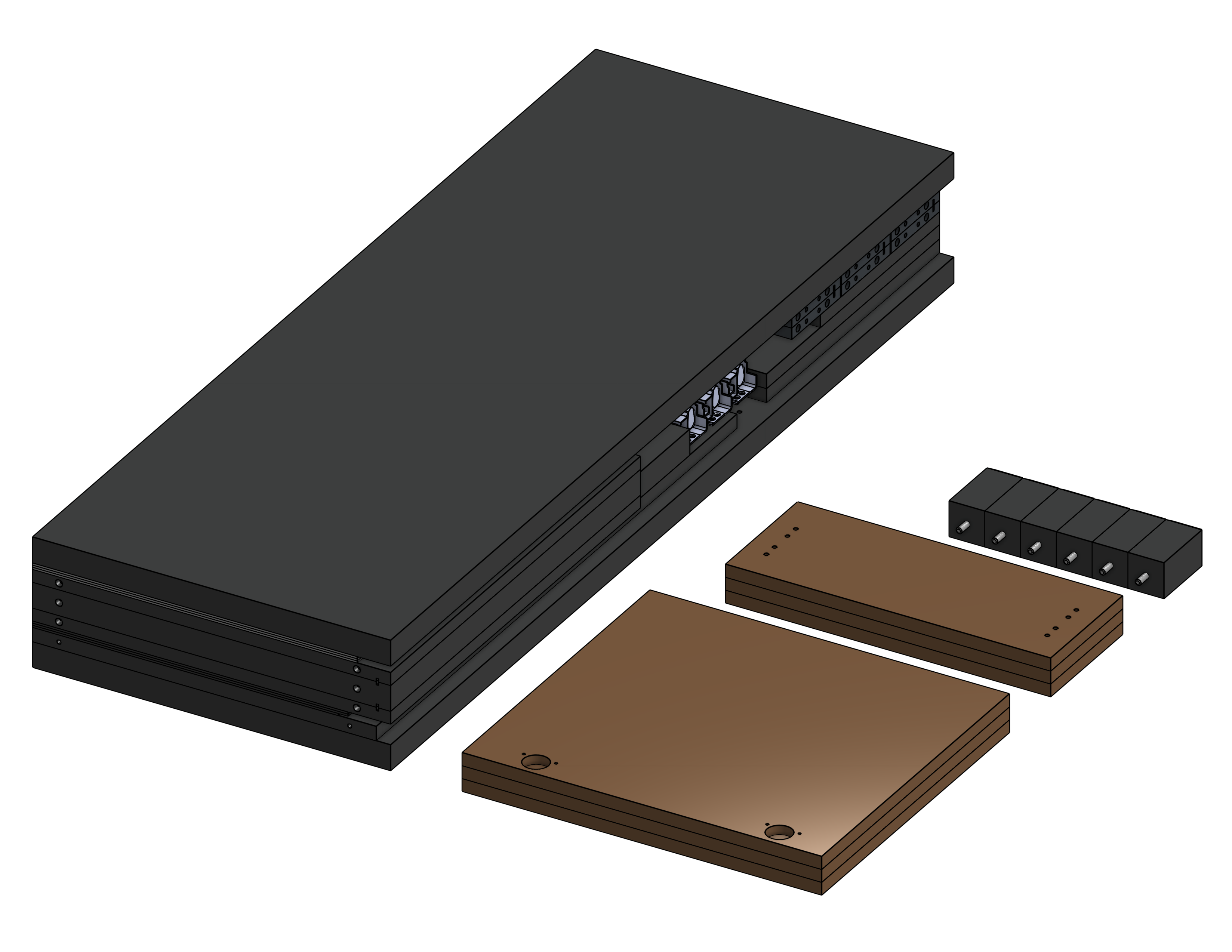

Flat-pack configurations.

06

Flat-pack and modular assembly

The enclosure ships flat-pack. Structural panels — the cabinet body, shelves, and internal maze walls — ship together. Door faces, drawer fronts, the tabletop, and legs ship separately, letting buyers choose their own finish combination before assembly.

This mirrors IKEA's model: the core structure is fixed, but every visible surface is swappable. A buyer can start with a white oak top and natural legs, and update the door faces two years later without replacing the whole piece.

Design specifications

Market Opportunity

Why this product has a clear path to market

The automatic litter box market — products like Litter-Robot — has proven that cat owners will pay a significant premium to reduce daily maintenance. This design targets the same buyer at a lower price point, without requiring power, connectivity, or proprietary consumables.

The aesthetic positioning opens a distribution channel no current litter enclosure occupies: the home furnishing aisle. IKEA, West Elm, and Crate & Barrel already sell furniture to the exact demographic who owns cats and cares how their home looks. No litter product currently lives in that aisle. The global pet furniture market is already a $7.95B category growing toward $12.44B by 2033 — this design sits at the intersection of that market and the litter enclosure segment no product has claimed.

As a construction reference: stripping a comparable $695 BESTÅ storage combination of components that don't apply — glass doors and shelves — and adjusting for this design's drawers and smaller footprint puts an equivalent IKEA-tier build at roughly $500–550.

Reflection

What this project taught me
